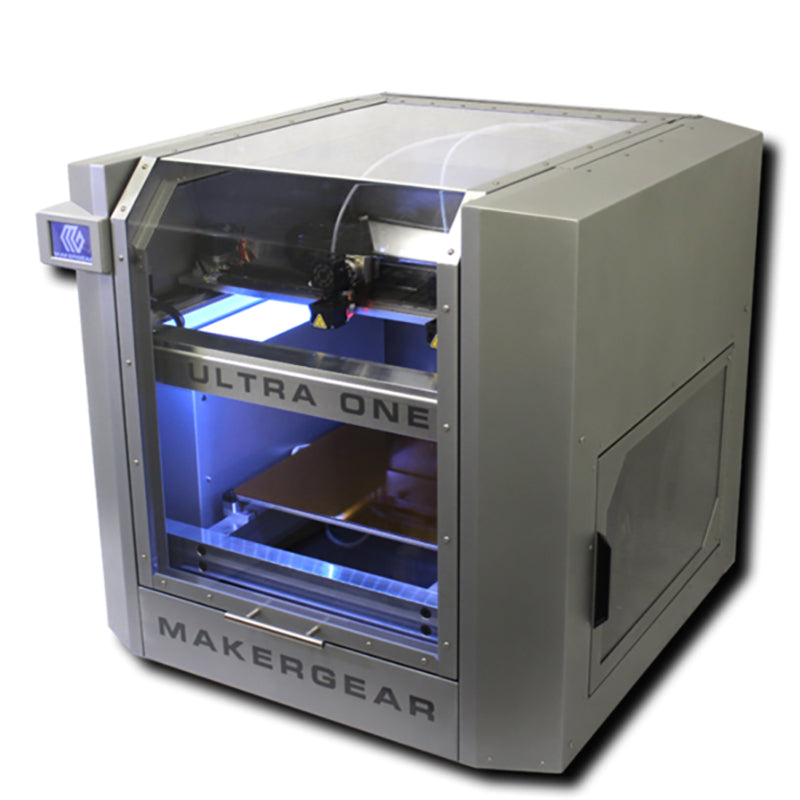

MakerGear Ultra One

Please contact info@makergear.com if you have questions or need a quote.

    • Industrial Power Meets Material Flexibility

      The MakerGear Ultra One 3D printer provides true material flexibility and delivers high-quality FFF prints for your industrial, business and educational needs.

      With a build volume of 16” by 14” by 13”, the Ultra One offers speed, precision and durability for large-scale parts and assemblies. Two independent extruders capable of high temperatures enable you to print with a wide variety of materials. Unlike other industrial printers, the Ultra One offers the freedom to choose your filament grade and filament supplier, enabling a broader range of projects and greatly reducing production costs.

      The Ultra One’s touch probe-powered intelligent bed leveling system maximizes print adhesion; linear rails and industrial-grade components provide true CNC reliability; and dual extruders allow you to print with two materials simultaneously, including water soluble support, or take advantage of the Ultra One’s duplication mode.

      The Ultra One operates at a whisper thanks to its rigid aluminum frame, beautifully engineered enclosure and trinamic drivers. A built-in LCD touch screen, a USB drive, and WiFi and ethernet capability provide flexible access.

      Ultra Ones purchased now will have a lead time of about 3 weeks.

    • Independent Dual Extruders for fast multi-material printing and use of soluble supports. Using both extruders simultaneously, the Ultra One offers twice the production capacity of fixed-head dual extrusion systems for single-material print jobs.

      Linear Rails of industrial grade offer true CNC reliability.

      Touch Probe Leveling reliably determines the levelness of the bed.  With these measurements, the bed is then automatically leveled by adjusting the z-motors at each of the four corners.  Additionally, the printer generates a mesh of the print surface before each print in order to compensate for small, unavoidable variations from perfect flatness.

      Print with unlimited complexity using soluble BVOH and HIPS support materials. Combine flexible and rigid elements into a single part to achieve your desired mechanical, thermal and chemical properties; and print multi-colored objects with stunning precision.

      WiFi/Ethernet Connectivity offers remote control and monitoring capabilities.

      Onboard computer with 10+ GB storage.

      LCD Screen & USB Port enable users to print files stored on flash drives.

      Simplify3D,  the industry's leading independent slicing software, included with no maintenance fees and free updates for life.

      OctoPrint for MakerGear offers one-click file preparation and direct design-to-print integrations.

      Compatibility with a wide range of operating systems, devices and browsers, including Windows/Mac/Linux, iOS/Android, Chrome/Firefox/Safari.
    • Technology FFF (Fused Filament Fabrication)
      Materials ABS, ASA, HIPS, Nylon, PET-G, PET-T, PLA, polycarbonate, polypropylene, BVOH, TPE, TPU, metal composites, wood composites, carbon fiber composites, and more.
      Print Head Independent Dual Extruders (Direct, non-Bowden)
      Build Volume 16" wide x 14" deep x 13" high (406 mm x 356 mm x 330 mm), Mimeo Mode 8" x 14" x 13" (203 mm x 356 mm x 330 mm)
      Filament Diameter 1.75 mm
      Layer Resolution Suggested layer height: 0.10 - 0.350 mm (100 - 350 micron)
      Print Head Travel Speed  10 - 500 mm/sec
      Build Plate Borosilicate Glass Plate coated with polyimide film
      Build Plate Temp. 20 - 140 °C
      Build Plate Heat Up Time < 10 minutes (110 °C)
      Max Build Chamber Temp. 50 °C
      Assisted Leveling Touch probe auto-leveling. Touch probe auto-compensation (for minor variations from flat).
      Nozzle Type and Diameter Ships with 0.50 mm brass (0.35 mm and 0.75 mm in brass and 0.35 mm and 0.50 mm in stainless steel also available).
      Nozzle Temp. 180 - 300 °C
      Nozzle Heat Up Time < 2 minutes (220 °C)
      X Motion The X gantry contains independent heads driven by fiberglass reinforced belts and guided by a precision linear rail.
      Y Motion Two precision linear rails guide the X gantry, which is driven by two fiberglass reinforced belts.
      Z motion Four 12 mm rods guide motion independently driven by four lead screws.
      Operating Sound Lower than 65 dBA
      Ambient Operation Temp. 15 ˚C to 32 ˚C (59 ˚F to 90 ˚F)
      Storage Temp. 0 ˚C to 32 ˚C (32 ˚F to 90 ˚F)
      Connectivity

      Ethernet, WiFi, LAN, USB Drive (accessible through LCD screen)

      Monitoring

      Webcam optional

      Machine Weight and Dimensions 170 lbs (77 kg), 30" x 30" x 30" (750 mm x 750 mm x 750 mm)
      AC input 100 - 120 V (20 A)/220 - 240 V (10 A), 47 - 63 Hz
      Power Consumption 1800 W max
      Supplied Software Simplify3D 4
      Printer Interface Touch Screen LCD and OctoPrint for MakerGear (web-based)
      Supported OS Mac, Windows, Linux, iOS, Android
      File Types .stl, .obj, .gcode
    • Ultra Ones purchased after March 7th, 2019 in the United States include FedEx Freight shipment.
    • New Ultra Ones have a 12-month limited warranty and offer optional warranty extension options through the MakerGear Protection Plan.

      MakerGear will replace all defective parts on Ultra Ones as stipulated by our  warranty terms and conditions. Replacement parts may be new or refurbished and will be shipped via FedEx Ground or USPS Priority in the US only. Exceptions – the MakerGear hot-end is only covered under warranty when MakerGear filament and authentic MakerGear components are used. The twelve-month warranty does not cover machine abuse.
    • MakerGear will include the standard power cord used in the country to which the 3D printer is shipped.

      Customer is responsible for customs duties, domestic sales tax, etc.

      Customers who live in Canada and other certain countries who have applicable free trade agreements with the US will not be charged customs duties, though domestic sales tax may still apply. Customers in South Korea will need to fill out their portion of the Certificate of Origin form and send it to customs@makergear.com for completion by MakerGear to eliminate customs duties.
    • Once uncrated, the Ultra One is ready to run!

      Requirements:
      Dedicated 20 A circuit
      Multiple lift partners: the machine weighs approximately 170 lbs (77 kg).
